SPT31500
€8,188.50
VAT excluded
- Out of stock

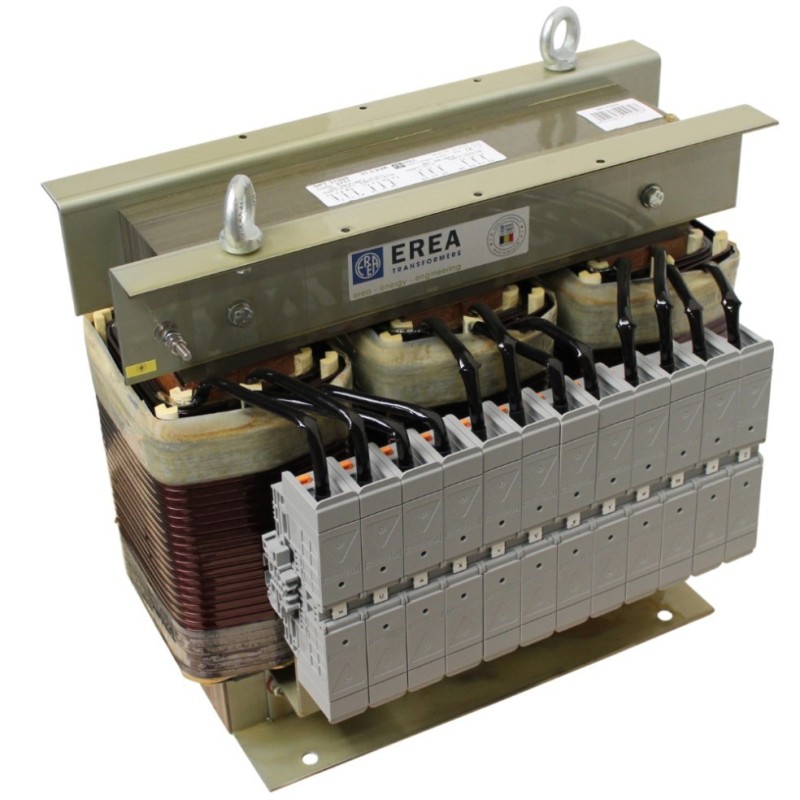

Three-phase separating transformer
- Dimensions A x B x C (mm):
- 480 x 310 x 415 mm
- Power (VA):
- 31,5 kVA
- Primary Voltage (Vac):
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
- Secondary Voltage (Vac):
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
You cannot order without creating an account.
SPT31500
Identification
- Article number
- SPT31500
- Description
- Three-phase separating transformer - IP00 - Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N - Power 31500VA
- Code
- 2711
- EAN code
- 5414503004727
- Brand
- EREA
- Type
- Isolating transformer (separate windings)
Electrical properties
- Voltage drop (dU%)
- 2,39 %.
- Efficiency (%)
- 96,8 %.
- Pcu (W)
- 759 W
- Po (W)
- 228 W
- Power (VA)
- 31,5 kVA
- Dielectric Strenght (Vac)
- 4500 Vac
- Dielectric strength referred to frame (Vac)
- 2500 Vac
- Primary Voltage (Vac)
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
- Secondary Voltage (Vac)
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
General properties
- Applications
- For industrial applications
- Protection class
- Prepared for class I
- Temperature class transfo
- F
- Degree of protection
- IP00
- Standards
- EN 60726
EN 60076 - Maximum ambient temperatur ta (°C)
- 40 °C
Mechanical properties
- Primary connection
- Nut fixing M8
- Secondary connection
- Nut fixing M8
- Dimensions A x B x C (mm)
- 480 x 310 x 415 mm
- Dimension D (mm)
- 320 mm
- Dimension E (mm)
- 210 mm
- Finishing
- Vacuum- and pressure- varnish impregnated
- Weight (kg)
- 141 kg
- Φ (mm)
- 11 mm
Options
- Option Silent Block (accessory)
- SILENT BLOCK 50
- Option Housing IP20 (accessory)
- U 2222722
- Option Housing IP23 (accessory)
- K23EI400/008
- On request
- Protection class II
Degree of protection IP23, IP44 and IP65
Other voltage and power ratings
Zigzag connection sets
Connections with power socket outlets and with mains cables
With fuses
With electrostatic screens
Tropicalized
Dimensioning
Electric scheme
Connection diagram
Symbol
