SPT 20000/D/690

SPT20000/D/690

€5,816.47
VAT excluded - Out of stock

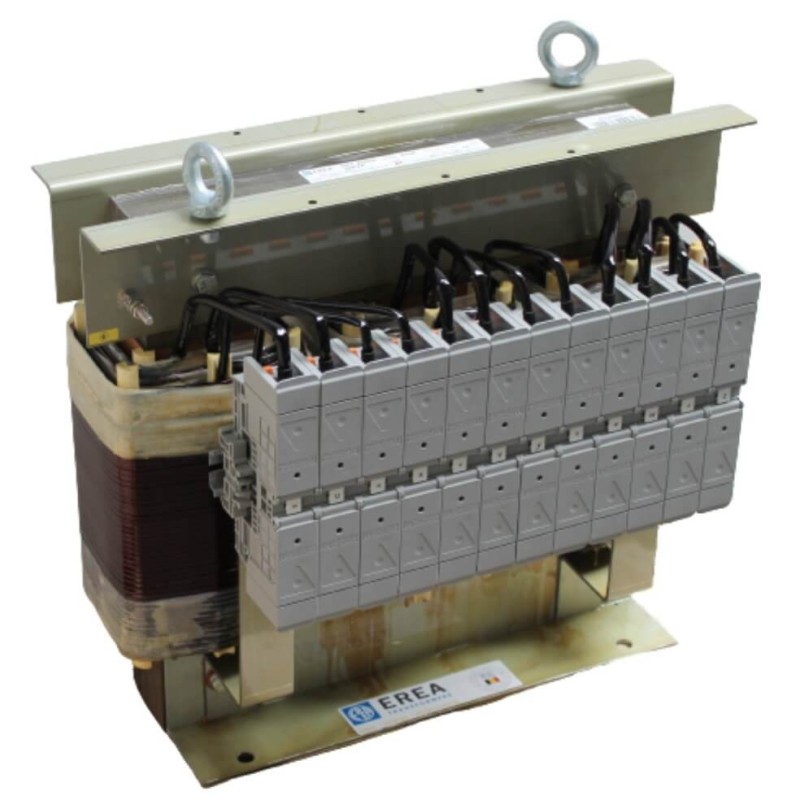

Three-phase separating transformer
Dimensions A x B x C (mm):
480 x 270 x 415 mm
Power (VA):
20 kVA
Primary Voltage (Vac):
3x 690 Vac ∆
Secondary Voltage (Vac):
3 x 230 Vac ∆ -- 3x 400 Vac Y+N

Order from a dealer

Compare

Out of stock - Delivery time 1 week

You cannot order without creating a account.

SPT20000/D/690

Identification

Article number
SPT20000/D/690
Description
Three-phase separating transformer - IP00 - Upri 690V ∆ // Usec 230V ∆ - 400V Y+N - Power 20000VA
Code
12372
EAN code
5414503123725
Brand
EREA
Type
Separating transformer

Electrical properties

Voltage drop (dU%)
3,4 %.
Efficiency (%)
96 %.
Pcu (W)
700 W
Po (W)
135 W
Power (VA)
20 kVA
Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2500 Vac
Primary Voltage (Vac)
3x 690 Vac ∆
Secondary Voltage (Vac)
3 x 230 Vac ∆ -- 3x 400 Vac Y+N

General properties

Applications
For industrial applications
Protection class
Prepared for class I
Temperature class transfo
F
Degree of protection
IP00
Standards
EN 60726
EN 60076
Maximum ambient temperatur ta (°C)
40 °C

Mechanical properties

Primary connection
Nut fixing M8
Secondary connection
Nut fixing M8
Dimensions A x B x C (mm)
480 x 270 x 415 mm
Dimension D (mm)
320 mm
Dimension E (mm)
175 mm
Finishing
Vacuum- and pressure- varnish impregnated
Weight (kg)
95 kg
Φ (mm)
11 mm

Options

Option Silent Block (accessory)
SILENT BLOCK 50
Option Housing IP20 (accessory)
U 2222720
Option Housing IP23 (accessory)
K23EI400/006
On request
Protection class II
Degree of protection IP23, IP44 and IP65
Other voltage and power ratings
Zigzag connection sets
Connections with power socket outlets and with mains cables
With fuses
With electrostatic screens
Tropicalized

Dimensioning

Electric scheme

Connection diagram

Symbol
