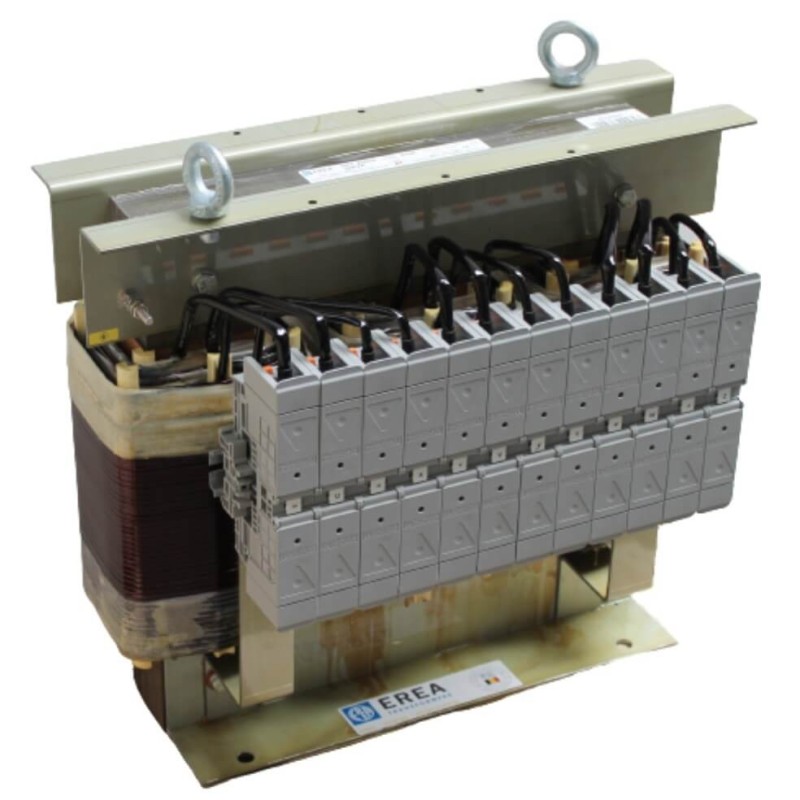

SPT 20000/D/500

€5,702.42
VAT excluded - Out of stock
Three-phase separating transformer
Dimensions A x B x C (mm): 480 mm x 270 mm x 415 mm
Power (VA): 20 kVA
Primary Voltage (Vac): new
Secondary Voltage (Vac): 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Quantity

Delivery time: 2 to 3 weeks (contact us)

SPT20000/D/500

Identification

Article number
SPT20000/D/500
Description
Three-phase separating transformer - IP00 - Upri 500V ∆ // Usec 230V ∆ - 400V Y+N - Power 20000VA
Code
12362
EAN code
5414503123626
Brand
EREA
Type

Electrical properties

Voltage drop (dU%)
3,4 %.
Efficiency (%)
96 %.
Pcu (W)
700 W
Po (W)
135 W
Power (VA)
20 kVA
Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2500 Vac
Primary Voltage (Vac)
new
Secondary Voltage (Vac)
3 x 230 Vac ∆ -- 3x 400 Vac Y+N

General properties

Applications
For industrial applications
Protection class
Prepared for class I
Temperature class transfo
F
Degree of protection
IP00
Standards
EN 60726
EN 60076
Maximum ambient temperatur ta (°C)
40 °C

Mechanical properties

Primary connection
Nut fixing M8
Secondary connection
Nut fixing M8
Dimensions A x B x C (mm)
480 mm x 270 mm x 415 mm
Dimension D (mm)
320 mm
Dimension E (mm)
175 mm
Finishing
Vacuum- and pressure- varnish impregnated
Weight (kg)
95 kg
Φ (mm)
11 mm

Options

Option Silent Block (accessory)
SILENT BLOCK 50
Option Housing IP20 (accessory)
U 2222720
Option Housing IP23 (accessory)
K23EI400/006
On request
Protection class II
Degree of protection IP23, IP44 and IP65
Other voltage and power ratings
Zigzag connection sets
Connections with power socket outlets and with mains cables
With fuses
With electrostatic screens
Tropicalized

Dimensioning

Electrical diagram

Connection diagram

Symbol
