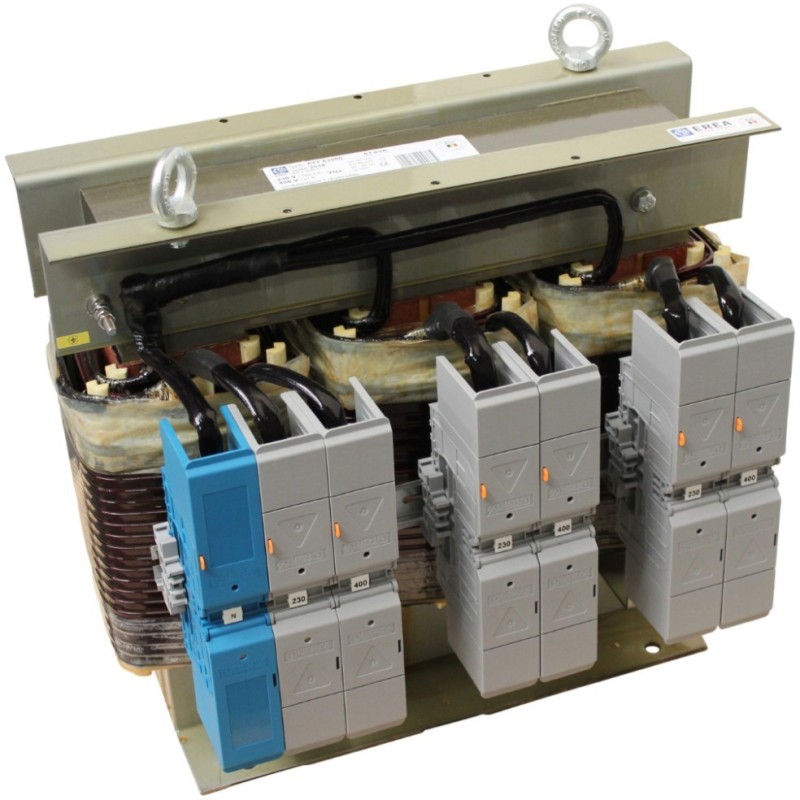

ATT 63000
€7,420.25
VAT excluded
Three-phase autotransformer
- Dimensions A x B x C (mm):
- 480 x 305 x 415 mm
- Power (VA):
- 63 kVA
- Primary Voltage (Vac):
- 3x 0-230-400 Vac Y+N
- Secondary Voltage (Vac):
- 3x 0-230-400 Vac Y+N
Last items in stock
You cannot order without creating a account.
ATT 63000
Identification
- Article number
- ATT 63000
- Description
- Three-phase autotransformer - IP00 - U 0-230-400V Y+N - Power 63000VA
- Code
- 2518
- EAN code
- 5414503000385
- Brand
- EREA
- Type
- Autotransformer (non-separate windings)
Electrical properties
- Voltage drop (dU%)
- 1,3 %.
- Efficiency (%)
- 98,5 %.
- Pcu (W)
- 767 W
- Po (W)
- 167 W
- Power (VA)
- 63 kVA
- Dielectric Strenght (Vac)
- -
- Dielectric strength referred to frame (Vac)
- 2500 Vac
- Primary Voltage (Vac)
- 3x 0-230-400 Vac Y+N
- Secondary Voltage (Vac)
- 3x 0-230-400 Vac Y+N
General properties
- Applications
- For industrial applications
- Protection class
- Prepared for class I
- Temperature class transfo
- F
- Degree of protection
- IP00
- Standards
- EN 60726
EN 60076 - Maximum ambient temperatur ta (°C)
- 40 °C
Mechanical properties
- Primary connection
- Nut fixing M10
- Secondary connection
- Nut fixing M10
- Dimensions A x B x C (mm)
- 480 x 305 x 415 mm
- Dimension D (mm)
- 320 mm
- Dimension E (mm)
- 190 mm
- Finishing
- Vacuum- and pressure- varnish impregnated
- Weight (kg)
- 120 kg
- Φ (mm)
- 11 mm
Options
- Option Silent Block (accessory)
- SILENT BLOCK 50
- Option Housing IP20 (accessory)
- U 2222721
- Option Housing IP23 (accessory)
- K23EI400/003
- On request
- Degree of protection IP23, IP44 and IP65
Other Voltage and power ratings
Connections with power socket outlets and with mains cables
With fuses
Tropicalized
Dimensioning
Electric scheme
Connection diagram
Symbol
