230TMHD8000

€2,854.59
VAT excluded - Out of stock

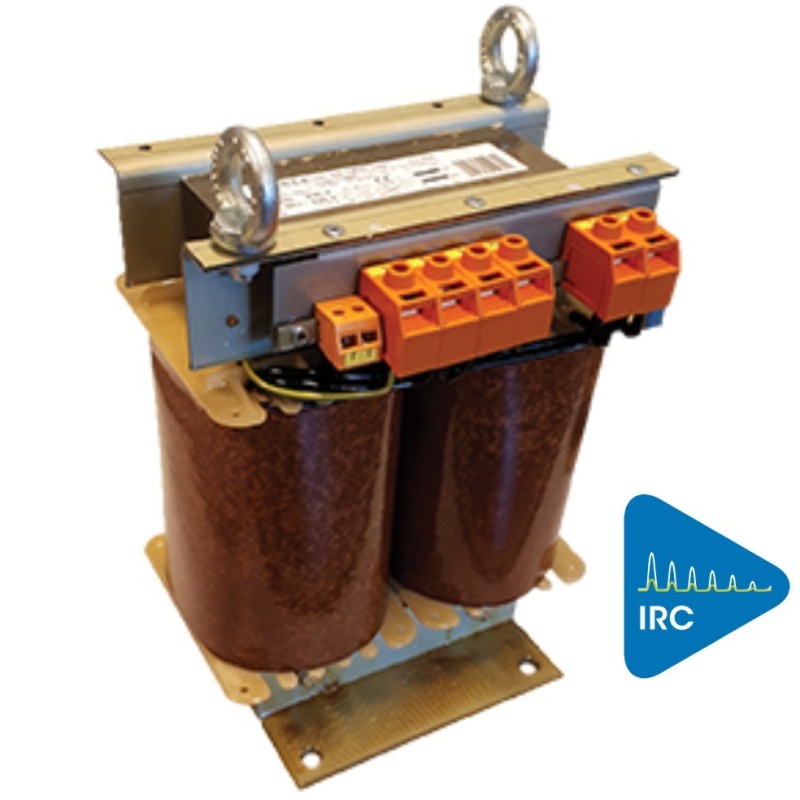

Single-phase isolating transformer for application in medical purpose rooms
Power (VA): 8 kVA
Primary Voltage (Vac): 230 Vac
Secondary Voltage (Vac): 230 Vac
Dimensions A x B x C (mm): 280 mm x 250 mm x 365 mm
Quantity

Delivery time: 2 to 3 weeks (contact us)

230TMHD8000

Identification

Article number
230TMHD8000
Description
Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 8000VA - PTC temperature sensor
Code
2784
EAN code
5414503006004
Brand
EREA
Type

Electrical properties

Power (VA)
8 kVA
Primary Voltage (Vac)
230 Vac
Secondary Voltage (Vac)
230 Vac
Dielectric Strenght (Vac)
4500 Vac
Efficiency (%)
97,2 %.
Pcu (W)
162 W
Po (W)
71 W
Voltage drop (dU%)
2,2 %.
Dielectric strength referred to frame (Vac)
2000 Vac
Short-circuit voltage (Ucc %)
-

General properties

Degree of protection
IP00
Standards
EN 61558-2-15
EN 60742
Maximum ambient temperatur ta (°C)
50 °C
Temperature class transfo
B
Applications
For all applications in medical purpose rooms

Mechanical properties

Dimensions A x B x C (mm)
280 mm x 250 mm x 365 mm
Dimension D (mm)
180 mm
Dimension E (mm)
193 mm
Weight (kg)
74 kg
Primary connection
Screw terminals 10 mm²
Secondary connection
Screw terminals 10 mm²
Finishing
Vacuum- and pressure- varnish impregnated

Options

On request
Special executions - PT100 temperature sensor
Option Housing IP20 (accessory)
-
Option Housing IP23 (accessory)
-
Option Silent Block (accessory)
SILENT BLOCK 50
