230TMHD3300
Identification
- Article number
- 230TMHD3300
- Downloads

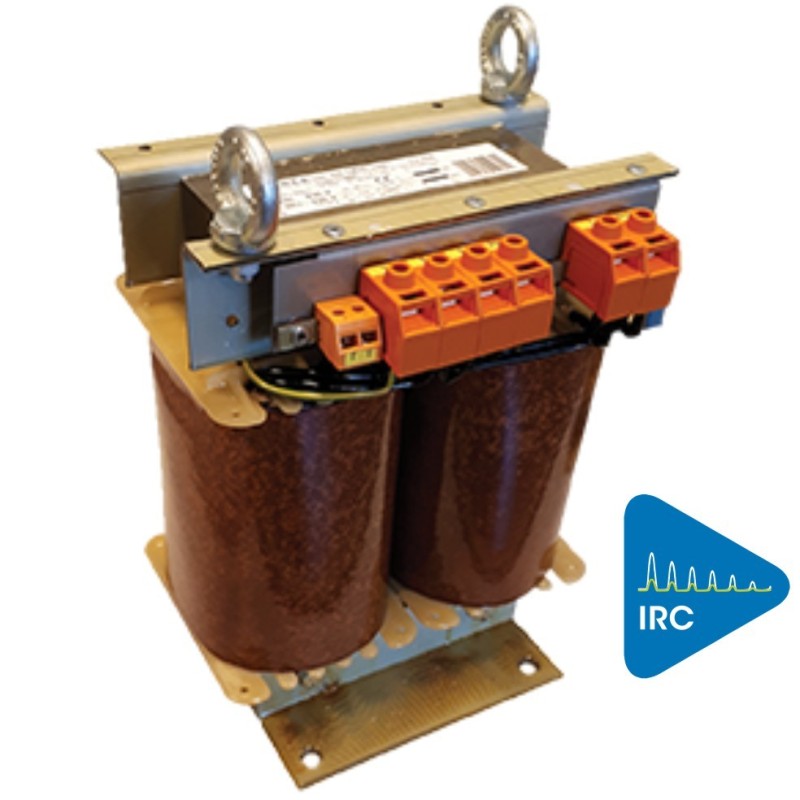

- Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 3300VA
- Code
- 2782
- EAN code
- 5414503005984
- Brand
- EREA
- Type
Electrical properties
- Power (VA)
- 3,3 kVA
- Primary Voltage (Vac)
- 230 Vac
- Secundary Voltage (Vac)
- 230 Vac
- Dielectric Strenght (Vac)
- 4500 Vac
- Efficiency (%)
- 96,3 %.
- Pcu (W)
- 90 W
- Po (W)
- 37 W
- Voltage drop (dU%)
- 2,8 %.
- Dielectric strength referred to frame (Vac)
- 2000 Vac
- Short-circuit voltage Ucc %)
- -
General properties
- Degree of protection
- IP00
- Standards
- EN 61558-2-15
EN 60742 - Maximum ambient temperatur ta (°C)
- 50 °C
- Temperature class transfo
- B
- Applications
- For all applications in medical purpose rooms
Mechanical properties
- Dimensions A x B x C (mm)
- 240 mm x 200 mm x 310 mm
- Dimension D (mm)
- 150 mm
- Dimension E (mm)
- 158 mm
- Weight (kg)
- 39 kg
- Primary connection
- Screw terminals 4 mm²
- Secondary connection
- Screw terminals 4 mm²
- Finishing
- Vacuum- and pressure- varnish impregnated
Options
- On request
- Special executions
- Option Housing IP20
- -
- Option Housing IP23
- -
- Option Silent Block
- SILENT BLOCK 50
