230TMHD2200

€1,326.21
VAT excluded - Out of stock

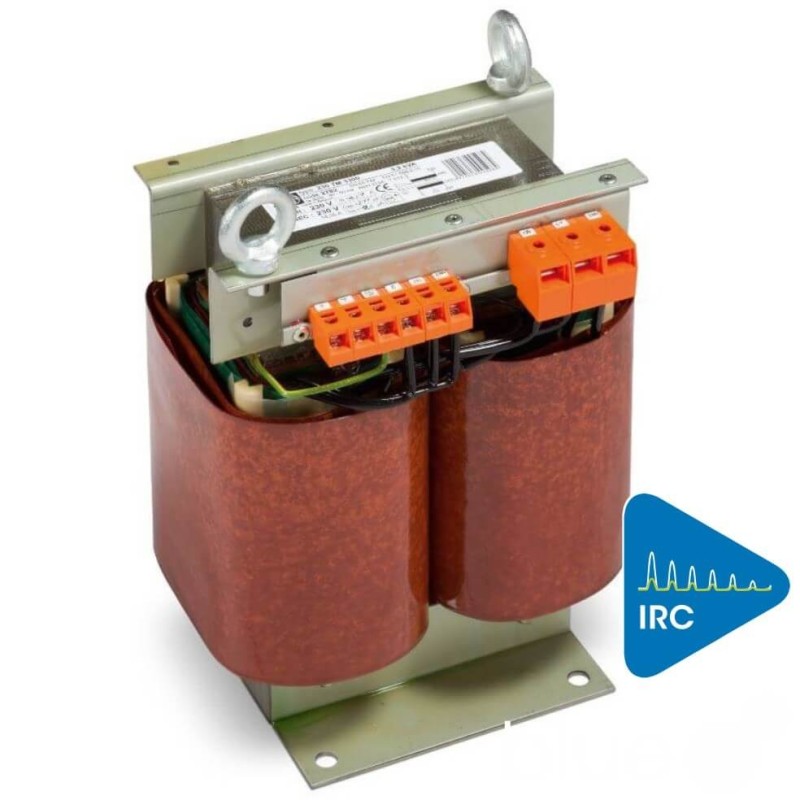

Single-phase isolating transformer for application in medical purpose rooms

Dimensions A x B x C (mm): 240 mm
Power (VA): 2,2 kVA
Primary Voltage (Vac): 230 Vac
Secondary Voltage (Vac): 230 Vac
Quantity

Delivery time: 2 to 3 weeks (contact us)

230TMHD2200

Identification

Article number
230TMHD2200
Description
Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 2200VA - PTC temperature sensor
Code
2781
EAN code
5414503005977
Brand
EREA
Type

Electrical properties

Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2000 Vac
Efficiency (%)
95,6 %.
Pcu (W)
70 W
Po (W)
32 W
Power (VA)
2,2 kVA
Primary Voltage (Vac)
230 Vac
Secondary Voltage (Vac)
230 Vac
Short-circuit voltage (Ucc %)
-
Voltage drop (dU%)
3 %.

General properties

Applications
For all applications in medical purpose rooms
Degree of protection
IP00
Maximum ambient temperatur ta (°C)
50 °C
Standards
EN 61558-2-15
EN 60742
Temperature class transfo
B

Mechanical properties

Dimension D (mm)
200 mm
Dimension E (mm)
137 mm
Dimensions A x B x C (mm)
240 mm
Finishing
Vacuum- and pressure- varnish impregnated
Primary connection
Screw terminals 4 mm²
Secondary connection
Screw terminals 4 mm²
Weight (kg)
34 kg

Options

On request
Special executions - PT100 temperature sensor
Option Housing IP20 (accessory)
-
Option Housing IP23 (accessory)
-
Option Silent Block (accessory)
SILENT BLOCK 50
