230TMHD1600
Identification
- Article number
- 230TMHD1600
- Description

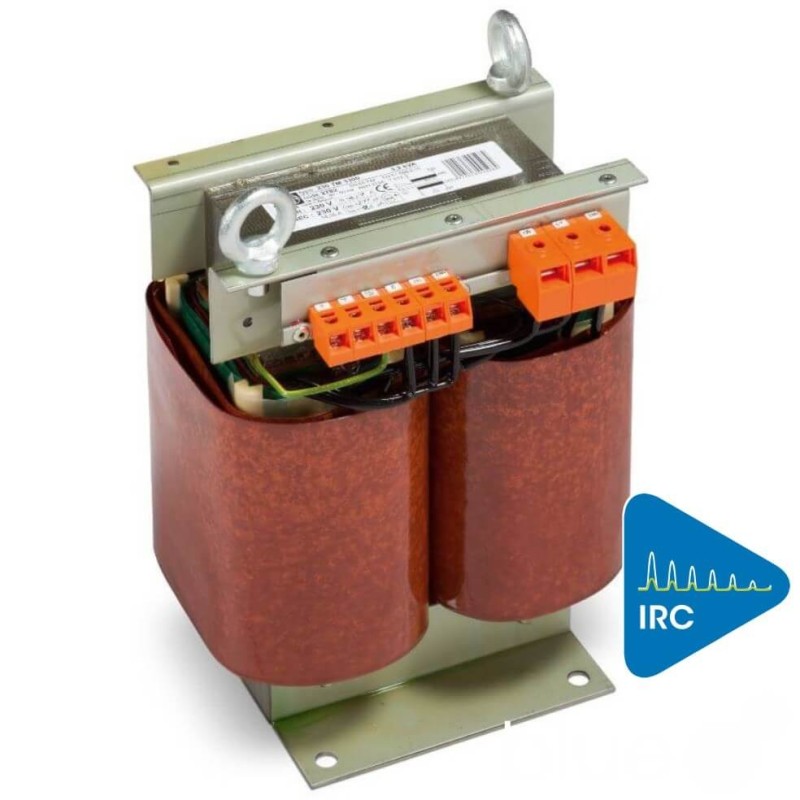

- Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 1600VA - PTC temperature sensor
- Code
- 2780
- EAN code
- 5414503005960
- Brand
- EREA
- Type
Electrical properties
- Dielectric Strenght (Vac)
- 4500 Vac
- Dielectric strength referred to frame (Vac)
- 2000 Vac
- Efficiency (%)
- 95,2 %.
- Pcu (W)
- 53 W
- Po (W)
- 28 W
- Power (VA)
- 1,6 kVA
- Primary Voltage (Vac)
- 230 Vac
- Secondary Voltage (Vac)
- 230 Vac
- Short-circuit voltage (Ucc %)
- -
- Voltage drop (dU%)
- 3 %.
General properties
- Applications
- For all applications in medical purpose rooms
- Degree of protection
- IP00
- Maximum ambient temperatur ta (°C)
- 50 °C
- Standards
- EN 61558-2-15
EN 60742 - Temperature class transfo
- B
Mechanical properties
- Dimension D (mm)
- 160 mm
- Dimension E (mm)
- 139 mm
- Dimensions A x B x C (mm)
- 192 mm
- Finishing
- Vacuum- and pressure- varnish impregnated
- Primary connection
- Screw terminals 2,5 mm²
- Secondary connection
- Screw terminals 2,5 mm²
- Weight (kg)
- 24 kg
Options
- On request
- Special executions - PT100 temperature sensor
- Option Housing IP20 (accessory)
- -
- Option Housing IP23 (accessory)
- -
- Option Silent Block (accessory)
- SILENT BLOCK 50
