230TMHD10000

€3,802.25
VAT excluded - Out of stock

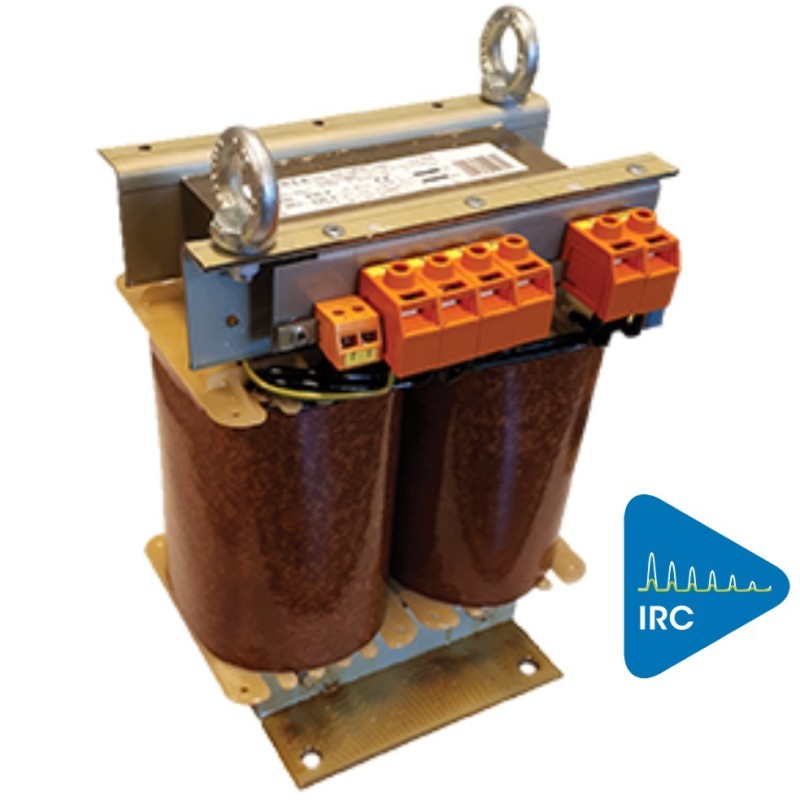

Single-phase isolating transformer for application in medical purpose rooms
Dimensions A x B x C (mm): 280 mm x 280 mm x 365 mm
Power (VA): 10 kVA
Primary Voltage (Vac): 230 Vac
Secondary Voltage (Vac): 230 Vac
Quantity

Delivery time: 2 to 3 weeks (contact us)

230TMHD10000

Identification

Article number
230TMHD10000
Description
Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 10000VA - PTC temperature sensor
Code
4242
EAN code
5414503042422
Brand
EREA
Type

Electrical properties

Voltage drop (dU%)
2 %.
Efficiency (%)
97,4 %.
Pcu (W)
174 W
Po (W)
89 W
Power (VA)
10 kVA
Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2000 Vac
Short-circuit voltage (Ucc %)
-
Primary Voltage (Vac)
230 Vac
Secondary Voltage (Vac)
230 Vac

General properties

Applications
For all applications in medical purpose rooms
Temperature class transfo
B
Degree of protection
IP00
Standards
EN 61558-2-15
EN 60742
Maximum ambient temperatur ta (°C)
50 °C

Mechanical properties

Primary connection
Screw terminals 10 mm²
Secondary connection
Screw terminals 10 mm²
Dimensions A x B x C (mm)
280 mm x 280 mm x 365 mm
Dimension D (mm)
180 mm
Dimension E (mm)
223 mm
Finishing
Vacuum- and pressure- varnish impregnated
Weight (kg)
90 kg

Options

Option Silent Block (accessory)
SILENT BLOCK 50
Option Housing IP20 (accessory)
-
Option Housing IP23 (accessory)
-
On request
Special executions - PT100 temperature sensor
