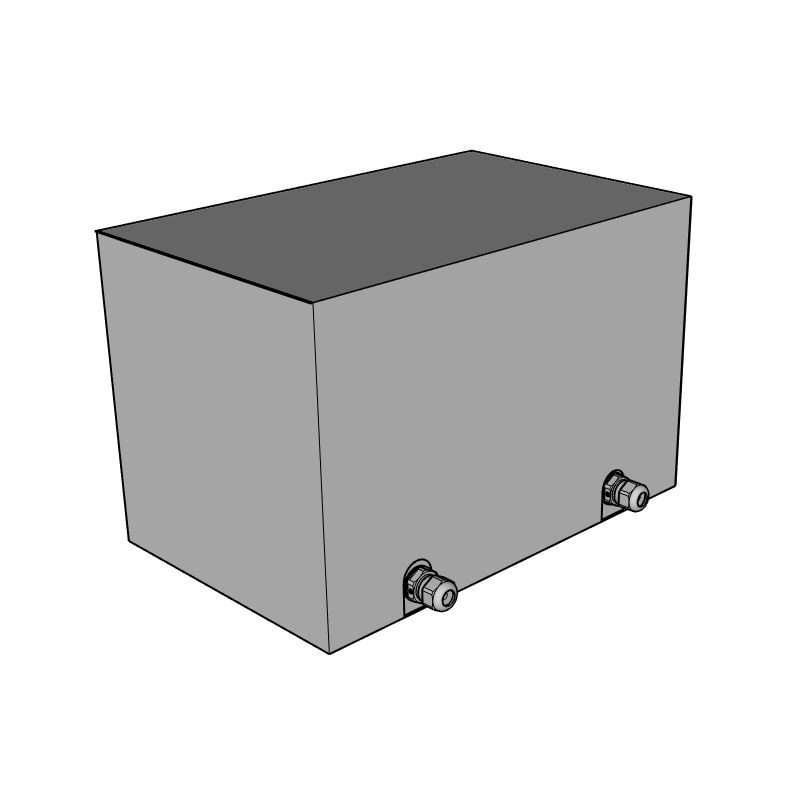

SPT32000/D/IP65
€19,736.52
VAT excluded
- Out of stock
- Dimensions A x B x C (mm):
- 669 x 499 x 518 mm
- Power (VA):
- 32 kVA
- Primary Voltage (Vac):
- 3x 400 Vac ∆
- Secondary Voltage (Vac):
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
You cannot order without creating an account.
(no attachments)
SPT32000/D/IP65
Identification
- Article number
- SPT32000/D/IP65
- Code
- 12122
- EAN code
- 5414503121226
- Brand
- EREA
- Type
- Isolating transformer (separate windings)
Electrical properties
- Voltage drop (dU%)
- 1,37 %.
- Efficiency (%)
- 98,1 %.
- Pcu (W)
- 1080 W
- Po (W)
- 405 W
- Power (VA)
- 32 kVA
- Dielectric Strenght (Vac)
- 4500 Vac
- Dielectric strength referred to frame (Vac)
- 2500 Vac
- Short-circuit voltage (Ucc %)
- 2,5%
- Primary Voltage (Vac)
- 3x 400 Vac ∆
- Secondary Voltage (Vac)
- 3x 230 Vac ∆ -- 3x 400 Vac Y+N
General properties
- Applications
- For industrial applications
- Protection class
- Class I
- Temperature class transfo
- F
- Degree of protection
- IP65
- Standards
- EN 60726
EN 60076 - Maximum ambient temperatur ta (°C)
- 40 °C
Mechanical properties
- Primary connection
- Nut fixing M12
- Secondary connection
- Nut fixing M12
- Dimensions A x B x C (mm)
- 669 x 499 x 518 mm
- Finishing
- Vacuum- and pressure- varnish impregnated
- Weight (kg)
- 342 kg
