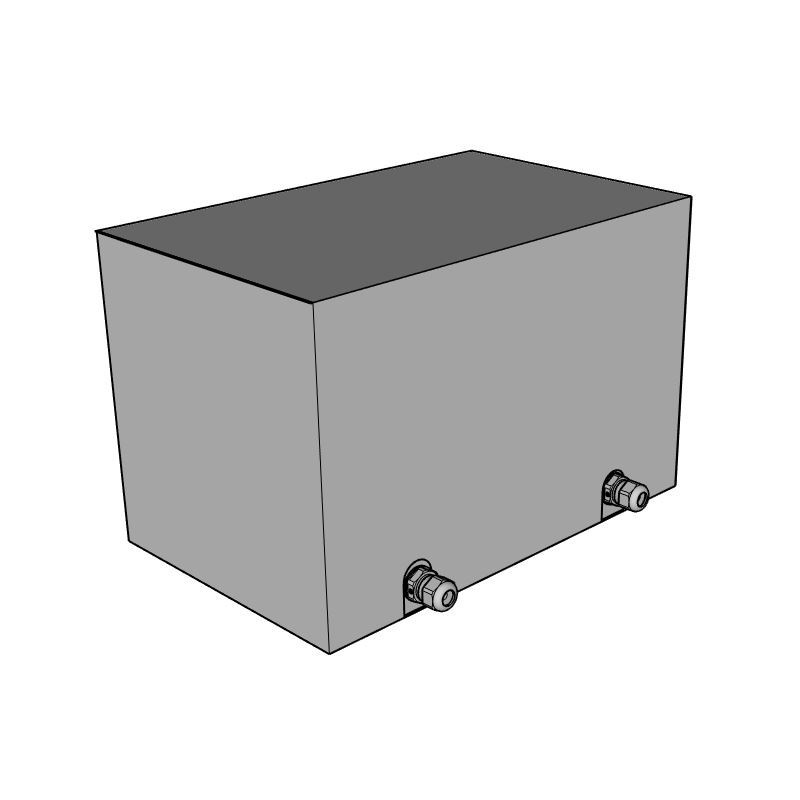

SPT1000/IP65

SPT1000/IP65

€1,397.17
VAT excluded - Out of stock
Dimensions A x B x C (mm): 279 mm
Power (VA): 1 kVA
Primary Voltage (Vac): 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary Voltage (Vac): 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Quantity

Delivery time: 2 to 3 weeks (contact us)

(no attachments)
SPT1000/IP65

Identification

Article number
SPT1000/IP65
Code
12109
EAN code
5414503121097
Brand
EREA
Type

Electrical properties

Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2500 Vac
Efficiency (%)
94 %.
Pcu (W)
52 W
Po (W)
45,5 W
Power (VA)
1 kVA
Primary Voltage (Vac)
3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary Voltage (Vac)
3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Short-circuit voltage (Ucc %)
-
Voltage drop (dU%)
3,15 %.

General properties

Applications
For industrial applications
Degree of protection
IP65
Maximum ambient temperatur ta (°C)
40 °C
Protection class
Prepared for class I
Standards
EN 60742
EN 61558-2-4
Temperature class transfo
B

Mechanical properties

Dimensions A x B x C (mm)
279 mm
Finishing
Vacuum- and pressure- varnish impregnated
Primary connection
Screw terminals 2,5 mm²
Secondary connection
Screw terminals 2,5 mm²
Weight (kg)
23 kg
