SPT 63000/D/500

€13,365.14
VAT excluded - Out of stock

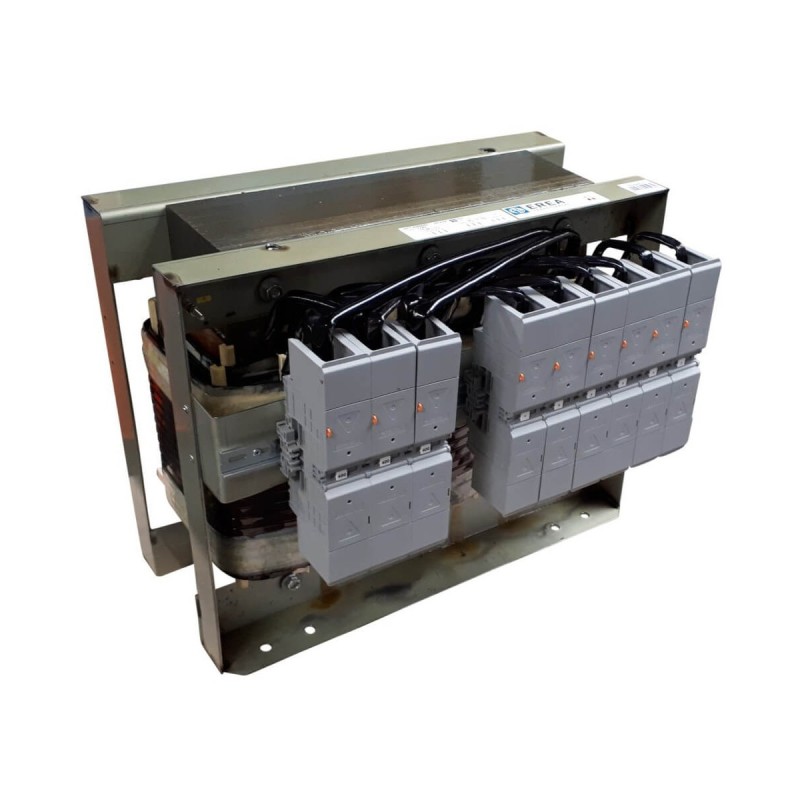

Three-phase separating transformer

Dimensions A x B x C (mm): 640 mm
Power (VA): 63 kVA
Primary Voltage (Vac): new
Secondary Voltage (Vac): 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Quantity

Delivery time: 2 to 3 weeks (contact us)

SPT63000/D/500

Identification

Article number
SPT63000/D/500
Description
Three-phase separating transformer - IP00 - Upri 500V ∆ // Usec 230V ∆ - 400V Y+N - Power 63000VA
Code
12367
EAN code
5414503123671
Brand
EREA
Type

Electrical properties

Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2500 Vac
Efficiency (%)
97,7 %.
Pcu (W)
1101 W
Po (W)
376 W
Power (VA)
63 kVA
Primary Voltage (Vac)
new
Secondary Voltage (Vac)
3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Voltage drop (dU%)
1,79 %.

General properties

Applications
For industrial applications
Degree of protection
IP00
Maximum ambient temperatur ta (°C)
40 °C
Protection class
Prepared for class I
Standards
EN 60726
EN 60076
Temperature class transfo
F

Mechanical properties

Dimension D (mm)
400 mm
Dimension E (mm)
210 mm
Dimensions A x B x C (mm)
640 mm
Finishing
Vacuum- and pressure- varnish impregnated
Primary connection
Nut fixing M10
Secondary connection
Nut fixing M10
Weight (kg)
250 kg
Φ (mm)
11 mm

Options

On request
Protection class II
Degree of protection IP23, IP44 and IP65
Other voltage and power ratings
Zigzag connection sets
Connections with power socket outlets and with mains cables
With fuses
With electrostatic screens
Tropicalized
Option Housing IP20 (accessory)
U 2222723
Option Housing IP23 (accessory)
K23EI500/002
Option Silent Block (accessory)
SILENT BLOCK 75

Dimensioning

Electrical diagram

Connection diagram

Symbol
