EPSP 400

EPSP 400

€344.26
VAT excluded

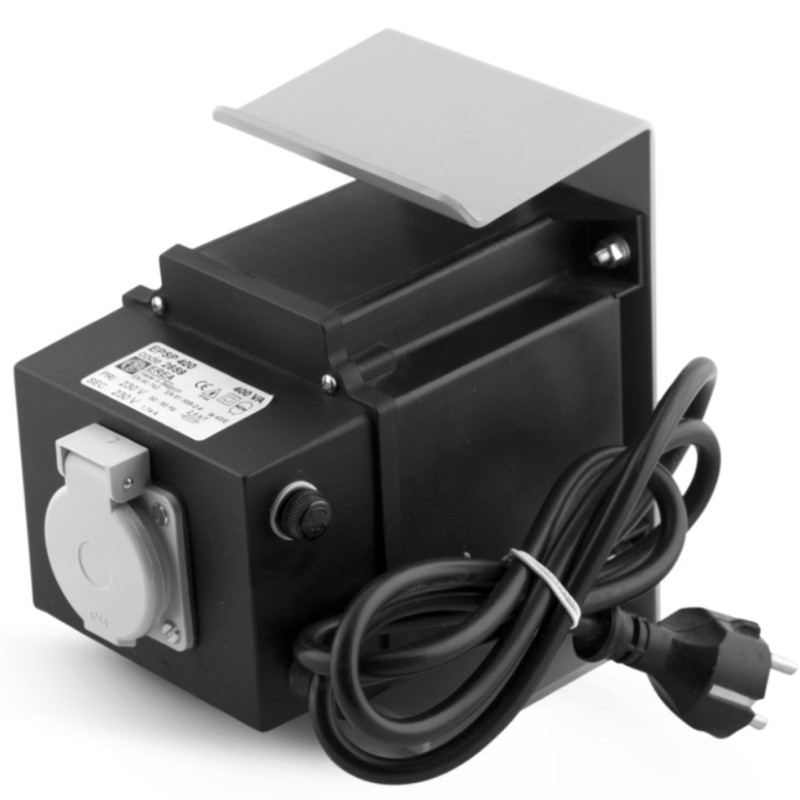

Portable single-phase protection transformer
Power (VA): 400 VA
Primary Voltage (Vac): 230 Vac
Secondary Voltage (Vac): 230 Vac
Dimensions A x B x C (mm): 195 mm x 140 mm x 215 mm
Quantity

In stock

EPSP 400

Identification

Article number
EPSP 400
Downloads
Portable single-phase protection transformer - Upri 230V Usec 230V + FUsec - Power 400VA
Code
2659
EAN code
5414503003584
Brand
EREA
Type

Electrical properties

Power (VA)
400 VA
Primary Voltage (Vac)
230 Vac
Secondary Voltage (Vac)
230 Vac
Dielectric Strenght (Vac)
4000 Vac
Efficiency (%)
93,4 %.
Pcu (W)
14,4 W
Po (W)
14,7 W
Voltage drop (dU%)
-
Dielectric strength referred to frame (Vac)
-
Short-circuit voltage (Ucc %)
-

General properties

Degree of protection
IP44
Standards
EN 61558-2-4
EN 60742
Maximum ambient temperatur ta (°C)
40 °C
Temperature class transfo
E
Applications
For all applications
Protection class
II

Mechanical properties

Dimensions A x B x C (mm)
195 mm x 140 mm x 215 mm
Weight (kg)
9,2 kg
Primary connection
Mains cable
Secondary connection
Socket outlet

Options

On request
Other voltage and power ratings
With electrostatic screens
Option Housing IP20
-
Option Housing IP23
-

Dimensioning

Electrical diagram

Symbol
