E 231-VT100/3
€218.24
VAT excluded
Power (VA): 100 VA
Primary Voltage (Vac): 231Vac
Secundary Voltage (Vac): 231Vac
Dimensions A x B x C (mm): 102 x 102 x 110
-
You cannot order without creating a professional account.

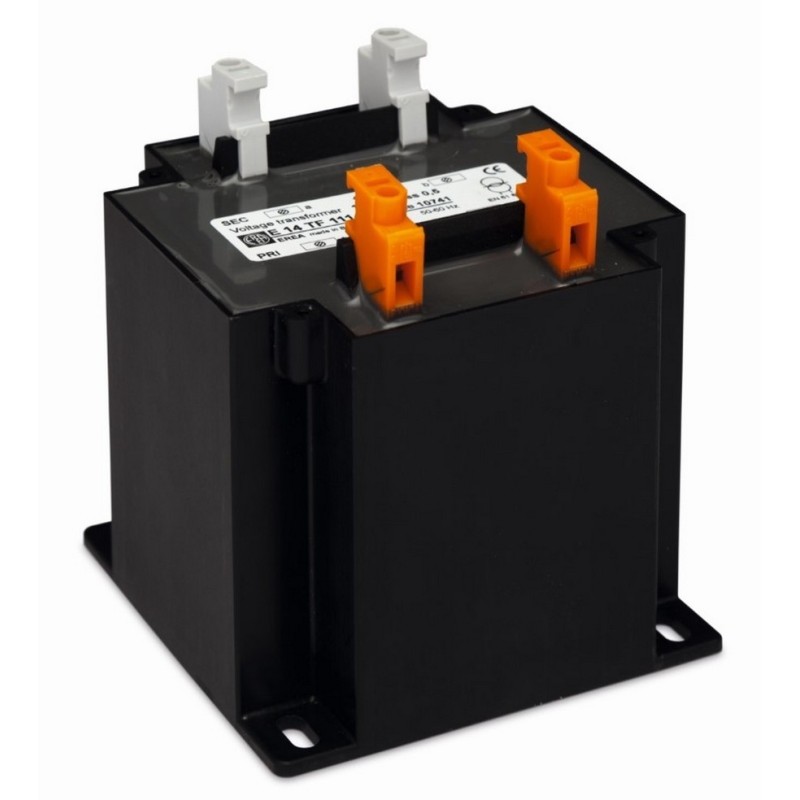

Single-phase Voltage measurement transformer 231V // 231V - P 100VA - Accuracy class 3,0
E 231-VT100/3
Identification
- Article number
- E 231-VT100/3
- Description
- Single-phase Voltage measurement transformer 231V // 231V - P 100VA - Accuracy class 3,0
- Code
- 1930
- EAN code
- 5414503111777
- Brand
- EREA
- Type
Electrical properties
- Power (VA)
- 100 VA
- Primary Voltage (Vac)
- 231Vac
- Secundary Voltage (Vac)
- 231Vac
- Frequency (Hz)
- 50-60
- Dielectric Strenght (Vac)
- 3000
- Voltage drop (dU%)
- -
- Dielectric strength referred to frame (Vac)
- -
- Short-circuit voltage Ucc %)
- -
General properties
- Degree of protection
- IP00
- Standards
- EN 61869-1
EN 61869-3
EN 60044-2 - Maximum ambient temperatur ta (°C)
- 40
- Temperature class transfo
- B
- Applications
- Voltage measurement
- Accuracy class
- cl 3,0
Mechanical properties
- Dimensions A x B x C (mm)
- 102 x 102 x 110
- Dimension D (mm)
- 84
- Dimension E (mm)
- 86
- M (kg)
- 3,8
- Primary connection
- Screw terminals
- Secondary connection
- Screw terminals
- Finishing
- Vacuum-encapsulated with synthetic resin
- Φ (mm)
- 5,5
Options
- Option Housing IP20
- -
- Option Housing IP23
- -
Dimensioning
