E 212SC630 SK

VAT excluded - Out of stock

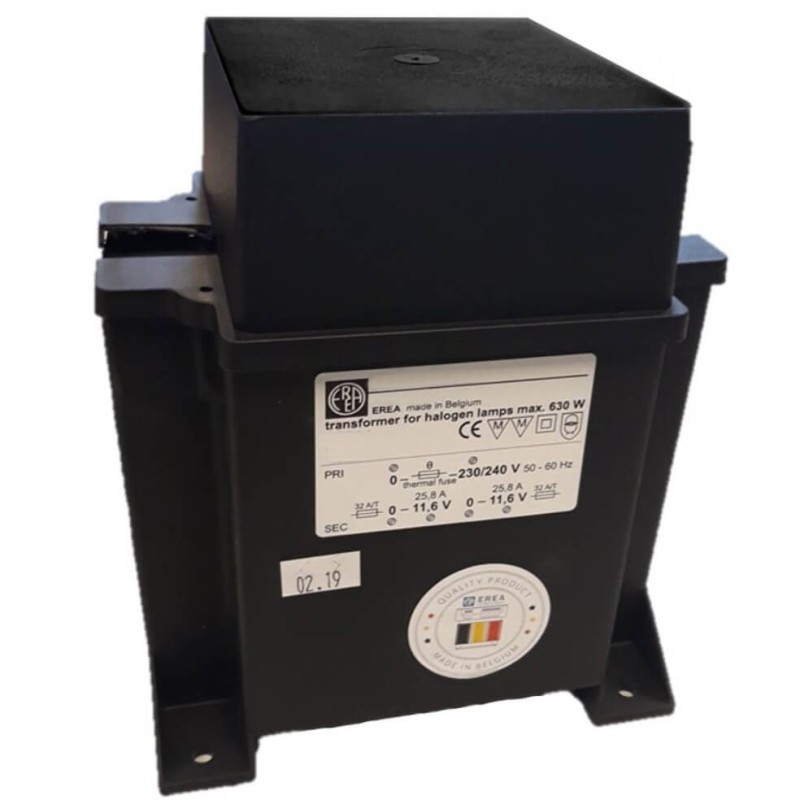

Single-phase safety transformer
Dimensions A x B x C (mm): 165 mm x 120 mm x 190 mm
Power (VA): 630 VA
Secondary Voltage (Vac): 2x 0-11,6 Vac

Delivery time: 2 to 3 weeks (contact us)

E 212SC630 SK


Article number
E 212SC630 SK
Single phase Safety Transformer - IP20 - for Halogenlight- Upri 230V // Usec 2x 0-11,6V - Power 630VA
EAN code

Electrical properties

Voltage drop (dU%)
Efficiency (%)
93,3 %.
Pcu (W)
18 W
Po (W)
25 W
Power (VA)
630 VA
Dielectric Strenght (Vac)
4000 Vac
Dielectric strength referred to frame (Vac)
Short-circuit voltage (Ucc %)
Secondary Voltage (Vac)
2x 0-11,6 Vac

General properties

Temperature class transfo
EN 61558-2-6
EN 60742
Maximum ambient temperatur ta (°C)
40 °C

Mechanical properties

Primary connection
Screw terminals 6 mm²
Secondary connection
Screw terminals 6 mm²
Dimensions A x B x C (mm)
165 mm x 120 mm x 190 mm
Dimension D (mm)
130 mm
Dimension E (mm)
95 mm
Vacuum-encapsulated with synthetic resin
Weight (kg)
8,8 kg
Φ (mm)
6 mm


Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
On request
Other voltage and power ratings
With electrostatic screens
With fuses in the secondary circuit
