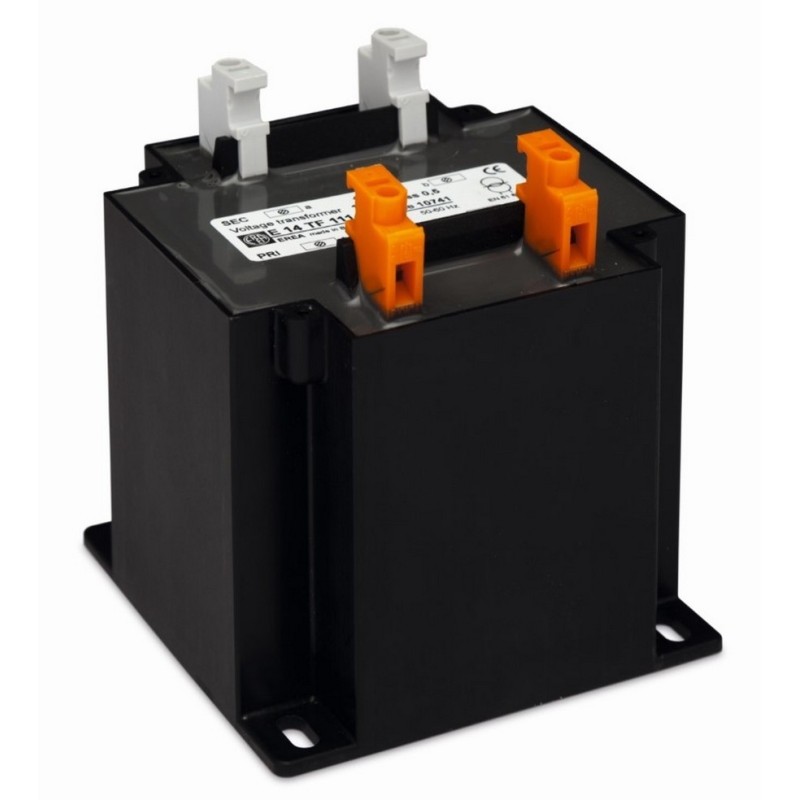

E 100V3-VT100/3

E 100V3-VT100/3

€231.75
VAT excluded
Power (VA): 100 VA
Primary Voltage (Vac): 231 Vac
Secondary Voltage (Vac): 100/√3 Vac
Dimensions A x B x C (mm): 102 mm x 102 mm x 110 mm
Quantity

Delivery time: 2 to 3 weeks (contact us)

E 100V3-VT100/3

Identification

Article number
E 100V3-VT100/3
Downloads
Single-phase Voltage measurement transformer 231V // 100/√3V - P 100VA - Accuracy class 3,0
Code
1945
EAN code
5414503111944
Brand
EREA
Type

Electrical properties

Power (VA)
100 VA
Primary Voltage (Vac)
231 Vac
Secondary Voltage (Vac)
100/√3 Vac
Dielectric Strenght (Vac)
3000 Vac
Voltage drop (dU%)
-
Dielectric strength referred to frame (Vac)
-
Short-circuit voltage (Ucc %)
-

General properties

Degree of protection
IP00
Standards
EN 61869-1
EN 61869-3
EN 60044-2
Maximum ambient temperatur ta (°C)
40 °C
Temperature class transfo
B
Applications
Voltage measurement
Accuracy class
cl 3,0

Mechanical properties

Dimensions A x B x C (mm)
102 mm x 102 mm x 110 mm
Dimension D (mm)
84 mm
Dimension E (mm)
86 mm
Weight (kg)
3,8 kg
Primary connection
Screw terminals
Secondary connection
Screw terminals
Finishing
Vacuum-encapsulated with synthetic resin
Φ (mm)
5,5 mm

Options

Option Housing IP20
-
Option Housing IP23
-

Dimensioning
