ATT 120000
Identification
- Article number
- ATT 120000
- Description

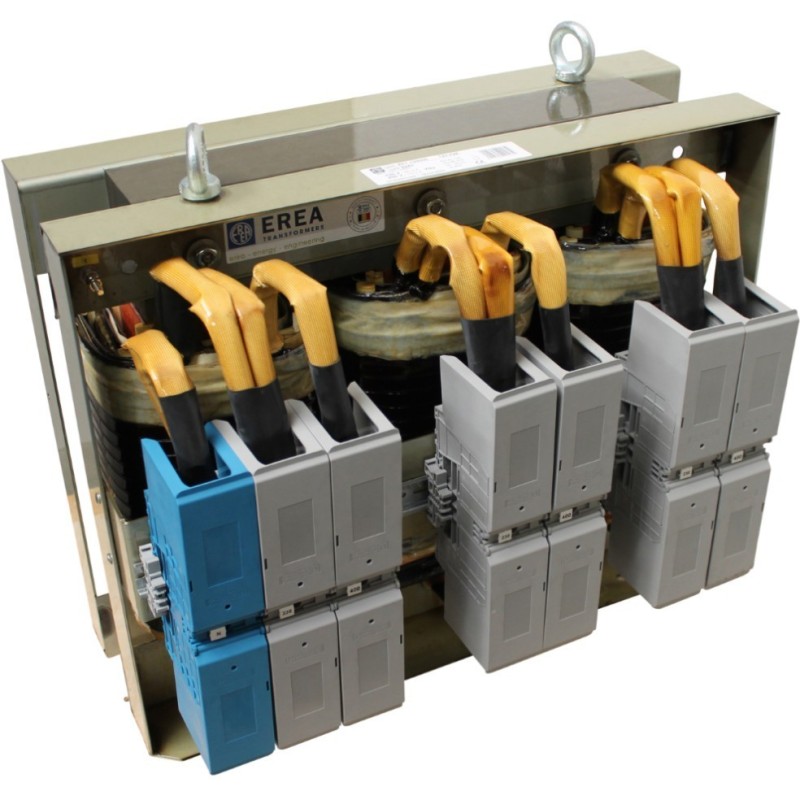

- Three-phase autotransformer - IP00 - U 0-230-400V Y+N - Power 120000VA
- Code
- 9243
- EAN code
- 5414503092434
- Brand
- EREA
- Type
Electrical properties
- Dielectric Strenght (Vac)
- -
- Dielectric strength referred to frame (Vac)
- 2500 Vac
- Efficiency (%)
- 98,9 %.
- Pcu (W)
- 1040 W
- Po (W)
- 280 W
- Power (VA)
- 120 kVA
- Primary Voltage (Vac)
- 3x 0-230-400 Vac Y+N
- Secondary Voltage (Vac)
- 3 x 0-230-400 Vac Y+N
- Voltage drop (dU%)
- 1,25 %.
General properties
- Applications
- For industrial applications
- Degree of protection
- IP00
- Maximum ambient temperatur ta (°C)
- 40 °C
- Protection class
- Prepared for class I
- Standards
- EN 60726
EN 60076 - Temperature class transfo
- F
Mechanical properties
- Dimension D (mm)
- 400 mm
- Dimension E (mm)
- 180 mm
- Dimensions A x B x C (mm)
- 640 mm
- Finishing
- Vacuum- and pressure- varnish impregnated
- Primary connection
- Nut fixing M16
- Secondary connection
- Nut fixing M16
- Weight (kg)
- 209 kg
- Φ (mm)
- 11 mm
Options
- On request
- Degree of protection IP23, IP44 and IP65
Other Voltage and power ratings
Connections with power socket outlets and with mains cables
With fuses
Tropicalized - Option Housing IP20 (accessory)
- U 2222723
- Option Housing IP23 (accessory)
- K23EI500/001
- Option Silent Block (accessory)
- SILENT BLOCK 75
