Single-phase isolating transformer
Power (VA): 10 kVA
Primary Voltage (Vac): 15-0-230-400 Vac
Secondary Voltage (Vac): 2 x 0-115 Vac
Dimensions A x B x C (mm): 320 mm x 210 mm x 415 mm
Quantity

In stock

230TC10000

Identification

Article number
230TC10000
Description
Single-phase control transformer IP00 - Upri 15-0-230-400V // Usec 2x 0-115V - Power 10000VA - Inrush power 27000VA
Code
2212
EAN code
5414503000149
Brand
EREA
Type

Electrical properties

Power (VA)
10 kVA
Primary Voltage (Vac)
15-0-230-400 Vac
Secondary Voltage (Vac)
2 x 0-115 Vac
Dielectric Strenght (Vac)
4500 Vac
Efficiency (%)
97 %.
Pcu (W)
184 W
Po (W)
75 W
Voltage drop (dU%)
1,8 %.
Dielectric strength referred to frame (Vac)
2500 Vac
Short-circuit voltage (Ucc %)
1,7 %.

General properties

Degree of protection
IP00
Standards
EN 61558-2-6
EN 60742
Maximum ambient temperatur ta (°C)
40 °C
Temperature class transfo
B
Applications
For all applications
Protection class
Prepared for class I

Mechanical properties

Dimensions A x B x C (mm)
320 mm x 210 mm x 415 mm
Dimension D (mm)
210 mm
Dimension E (mm)
170 mm
Weight (kg)
73 kg
Primary connection
Screw terminals 10 mm²
Secondary connection
Screw terminals 10 mm²
Finishing
Vacuum- and pressure- varnish impregnated
Φ (mm)
11 mm

Options

On request
Protection class II
Degree of protection IP23, IP44 and IP65
Other voltage and power ratings
Connections with power socket outlets and with mains cables
With fuses
With electrostatic screens
Tropicalized
Option Housing IP20 (accessory)
U 222748
Option Housing IP23 (accessory)
K23UI240/002
Option Silent Block (accessory)
SILENT BLOCK 20

Dimensioning

Electrical diagram

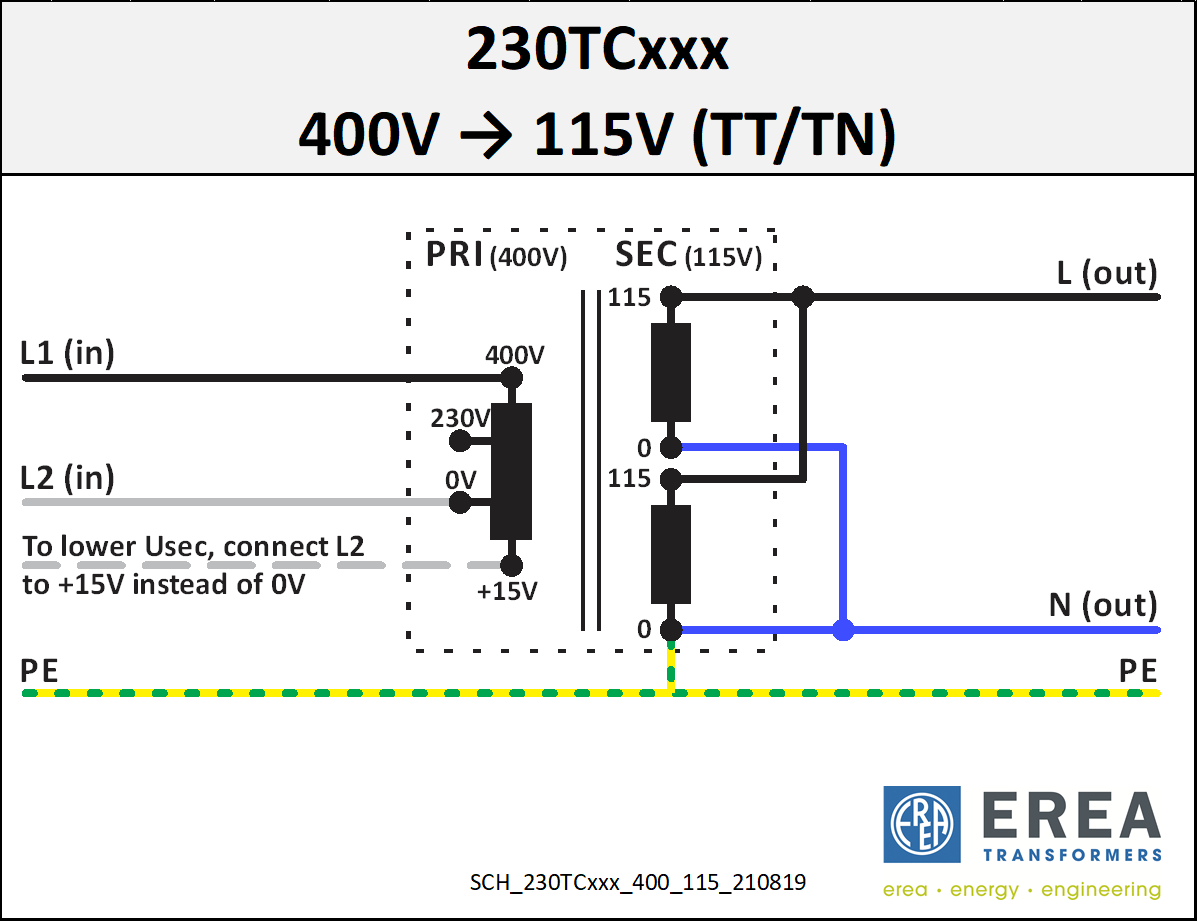

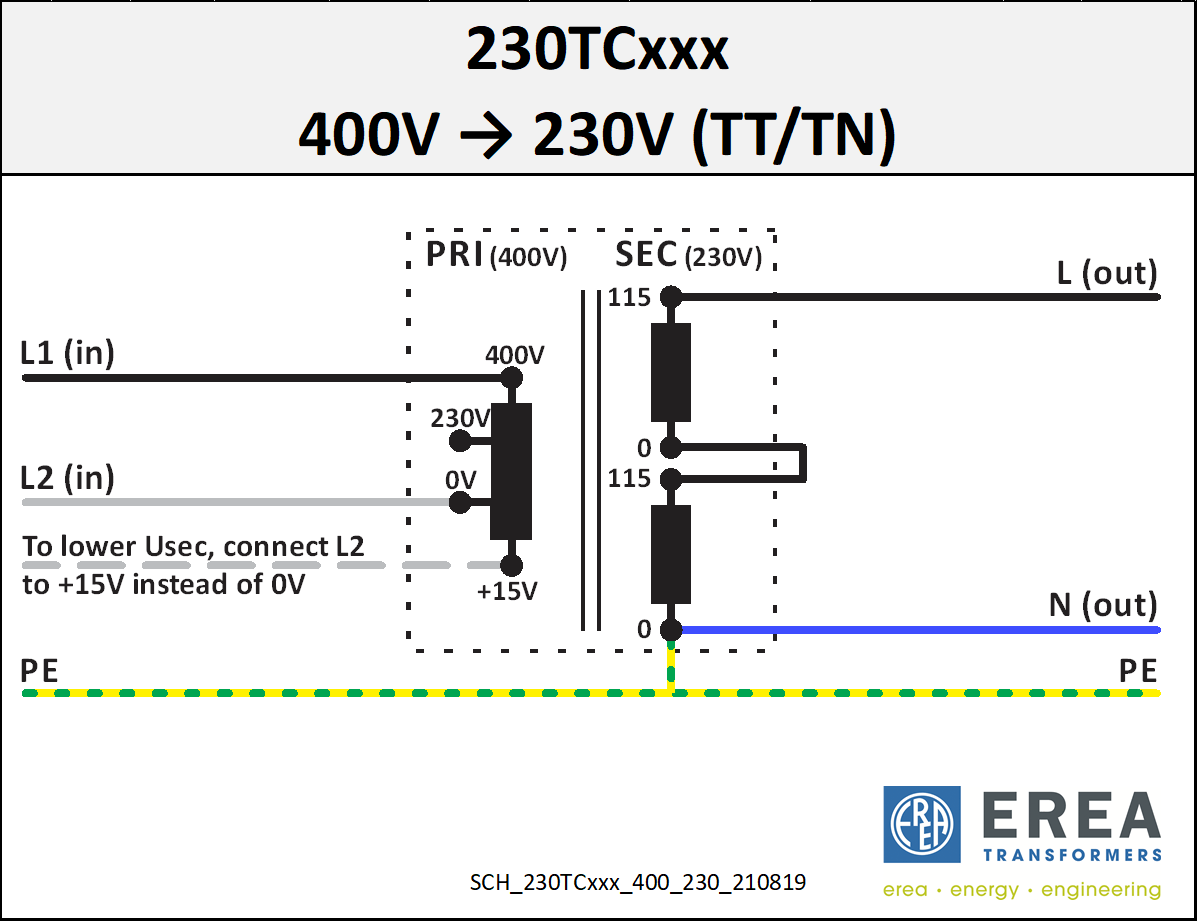

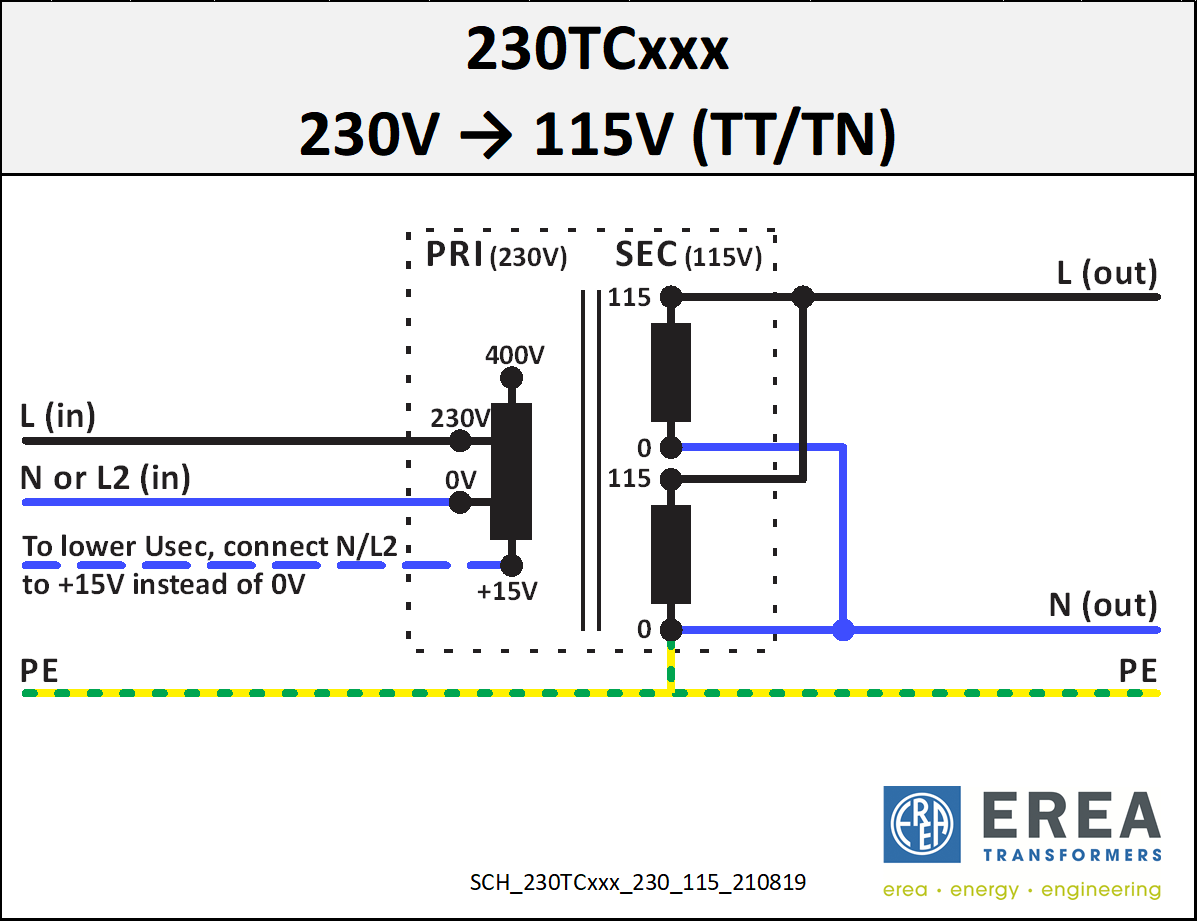

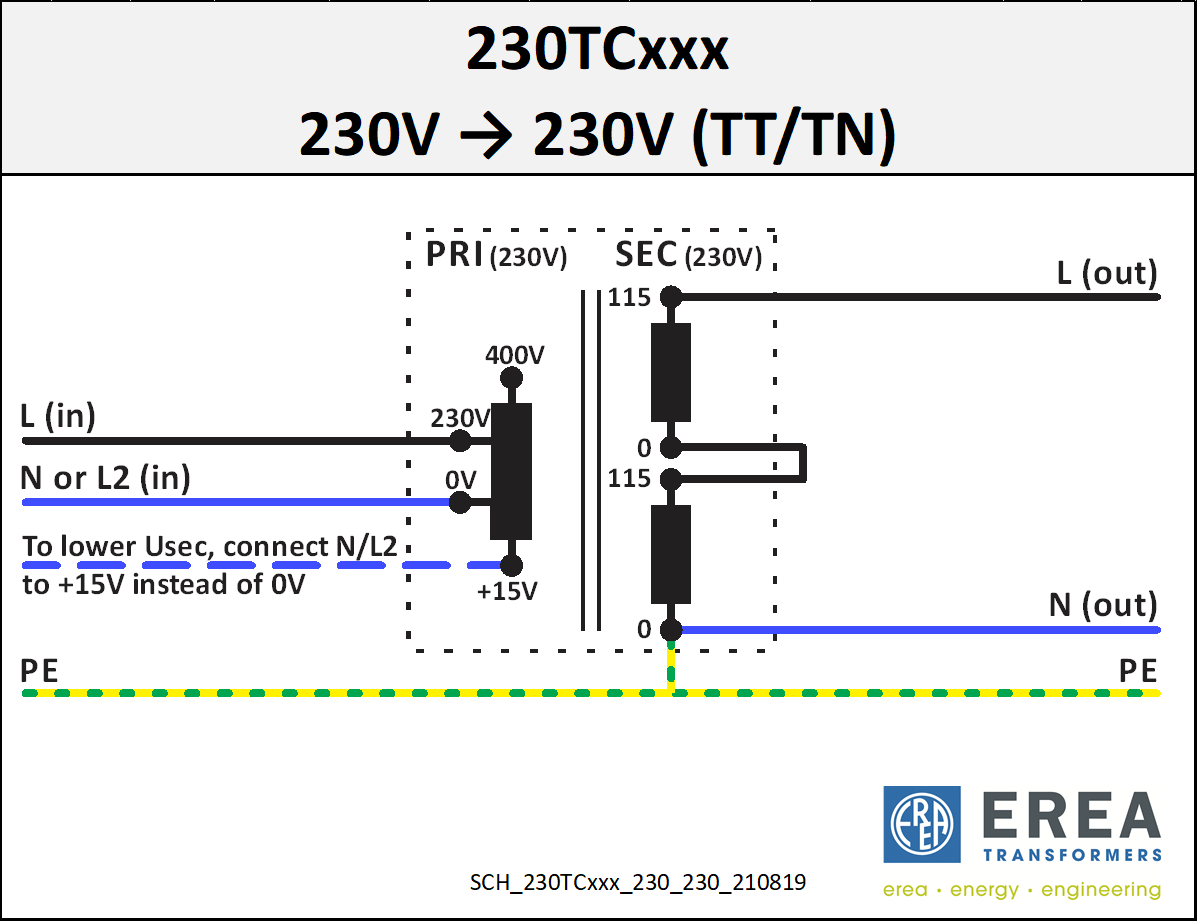

Connection diagram

Symbol
