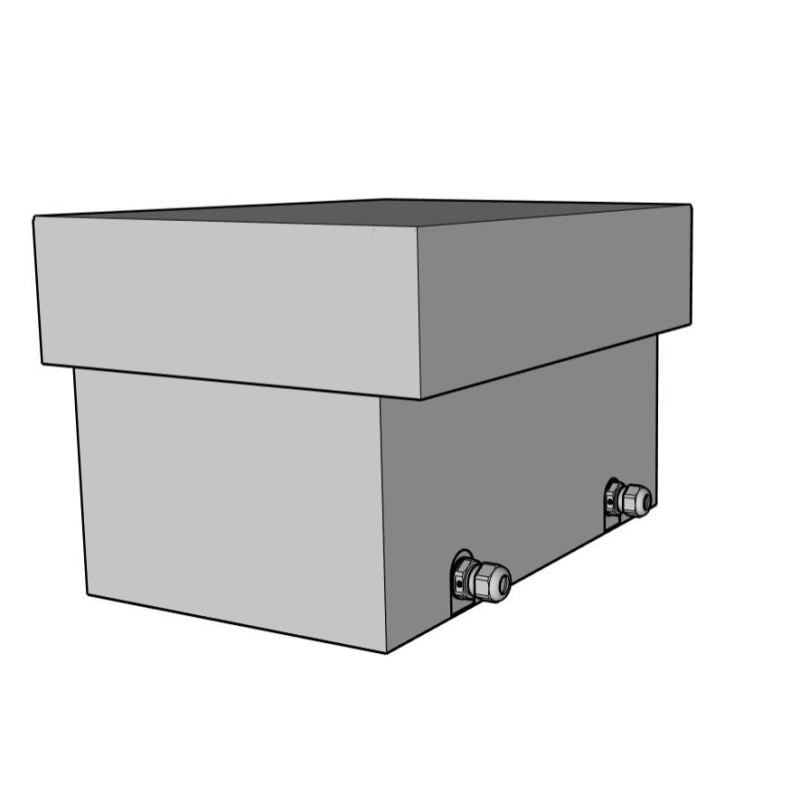

224TC1000/IP65

€1,477.41
VAT excluded - Out of stock
Dimensions A x B x C (mm): 279 mm
Power (VA): 1 kVA
Primary Voltage (Vac): 15-0-230-400 Vac
Secondary Voltage (Vac): 2x 24 Vac
Quantity

Delivery time: 2 to 3 weeks (contact us)

(no attachments)
224TC1000/IP65

Identification

Article number
224TC1000/IP65
Code
9251
EAN code
5414503092519
Brand
EREA
Type

Electrical properties

Dielectric Strenght (Vac)
4500 Vac
Dielectric strength referred to frame (Vac)
2500 Vac
Efficiency (%)
94 %.
Pcu (W)
52 W
Po (W)
43,8 W
Power (VA)
1 kVA
Primary Voltage (Vac)
15-0-230-400 Vac
Secondary Voltage (Vac)
2x 24 Vac
Short-circuit voltage (Ucc %)
3,1 %.
Voltage drop (dU%)
3,2 %.

General properties

Applications
For all SELV applications
Degree of protection
IP65
Maximum ambient temperatur ta (°C)
40 °C
Protection class
Prepared for class I
Standards
EN 61558-2-6
EN 60742
Temperature class transfo
B

Mechanical properties

Dimensions A x B x C (mm)
279 mm
Finishing
Vacuum- and pressure- varnish impregnated
Primary connection
Screw terminals 4 mm²
Secondary connection
Screw terminals 10 mm²
Weight (kg)
26 kg
