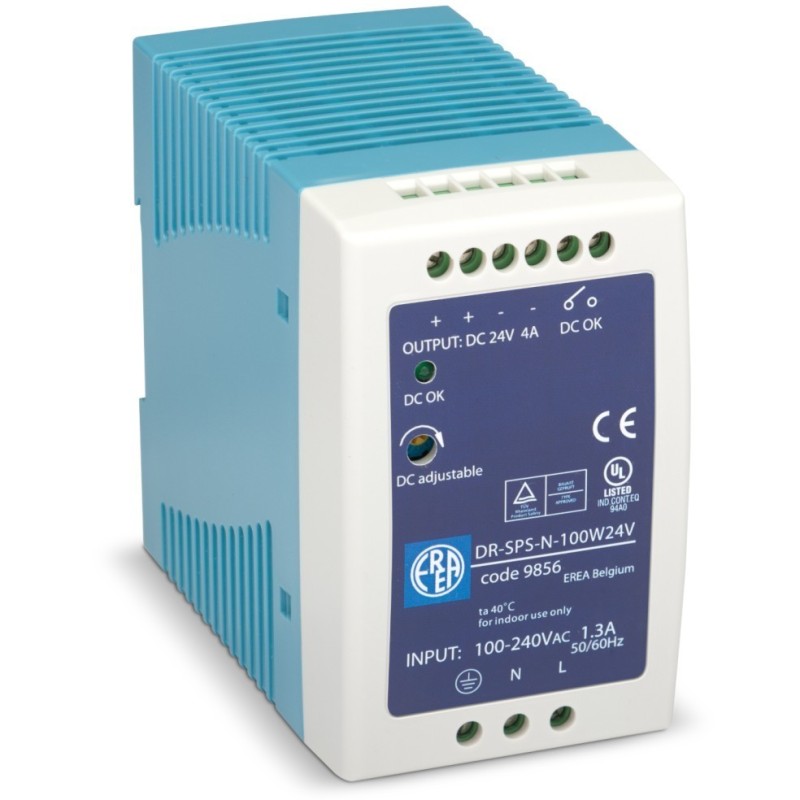

DR-SPS-N-100W24V
€192.15
VAT excluded
Single-phase switched-mode and stabilised DC power supply (adjustable)
- Dimensions A x B x C (mm):
- 55 x 90 x 100 mm
- Power (VA):
- 100 W (Current limiting - Autorecovery)
- Primary Voltage (Vac):
- 230 Vac (85...264 Vac)
- Secondary Voltage DC (Vdc):
- 24 Vdc (24..28 Vdc)
In Stock
You cannot order without creating a account.
DR-SPS-N-100W24V
Identification
- Article number
- DR-SPS-N-100W24V
- Description
- Stabilized single-phase power supply (Narrow) adjustable for DIN-rail mounting - Upri [85-264V] 230V AC // Usec 12V DC - In 4A - P 100W
- Code
- 9856
- EAN code
- 5414503098566
- Brand
- EREA
- Type
Electrical properties
- Efficiency (%)
- 86 %.
- Power (VA)
- 100 W (Current limiting - Autorecovery)
- Primary Voltage (Vac)
- 230 Vac (85...264 Vac)
- Primary Voltage DC (Vdc)
- 120...370 Vdc
- Secondary Voltage DC (Vdc)
- 24 Vdc (24..28 Vdc)
General properties
- Applications
- For all applications
- Degree of protection
- IP00
- Standards
- EN 60950
UL 508
EN 55022 class B
EN 61000-6-2
EN 61000-3-2 class D - Maximum ambient temperatur ta (°C)
- 40 °C
Mechanical properties
- Primary connection
- Screw terminals
- Secondary connection
- Screw terminals
- Dimensions A x B x C (mm)
- 55 x 90 x 100 mm
- Weight (kg)
- 450 g
