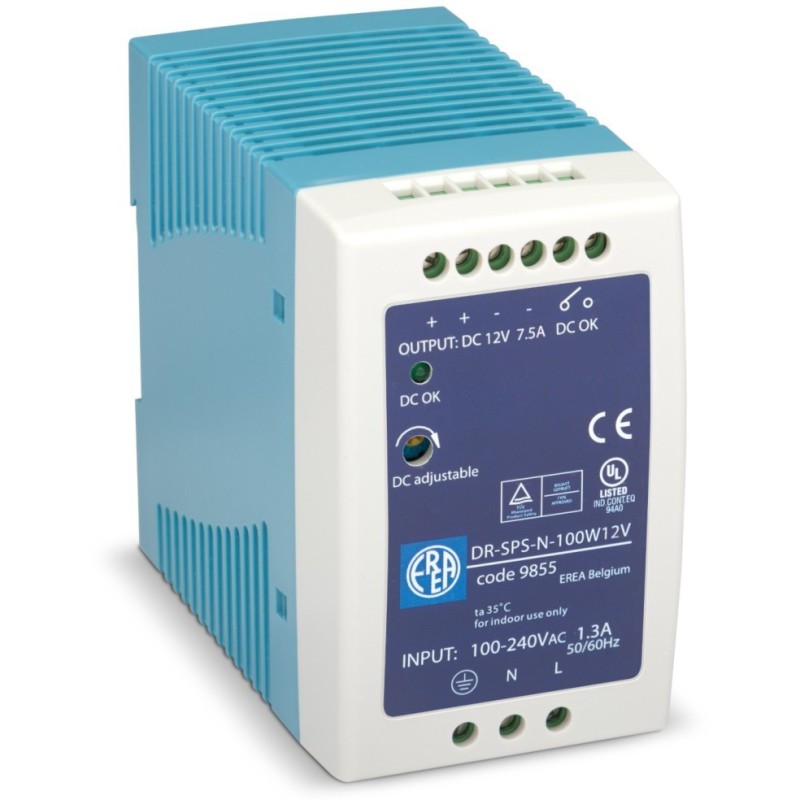

DR-SPS-N-100W12V

DR-SPS-N-100W12V

€189.31
VAT excluded

Single-phase switched-mode and stabilised DC power supply (adjustable)

Dimensions A x B x C (mm): 55 mm
Power (VA): 100 W
Primary Voltage (Vac): 230 Vac (85...264 Vac)
Secondary Voltage DC (Vdc): 12 Vdc (12..14 Vdc)
Quantity

In stock

DR-SPS-N-100W12V

Identification

Article number
DR-SPS-N-100W12V
Description
Stabilized single-phase power supply (Narrow) adjustable for DIN-rail mounting - Upri [85-264V] 230V AC // Usec 12V DC - In 7,5A - P 100W
Code
9855
EAN code
5414503098559
Brand
EREA
Type

Electrical properties

Efficiency (%)
85 %.
Power (VA)
100 W
Primary Voltage (Vac)
230 Vac (85...264 Vac)
Primary Voltage DC (Vdc)
24 Vdc (24..28 Vdc)
Secondary Voltage DC (Vdc)
12 Vdc (12..14 Vdc)

General properties

Applications
For all applications
Degree of protection
IP00
Maximum ambient temperatur ta (°C)
40 °C
Standards
EN 60950
UL 508
EN 55022 class B
EN 61000-6-2
EN 61000-3-2 class D

Mechanical properties

Dimensions A x B x C (mm)
55 mm
Primary connection
Screw terminals
Secondary connection
Screw terminals
Weight (kg)
450 g
